Radio Cassette-Corder CFM-20L

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 2001 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 349181

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Long Wave and FM or UHF
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 230 / D: 4 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.7 cm = 3 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Radio Cassette-Corder CFM-20L - Sony Corporation; Tokyo
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 278 x 154 x 130 mm / 10.9 x 6.1 x 5.1 inch
  • Notes

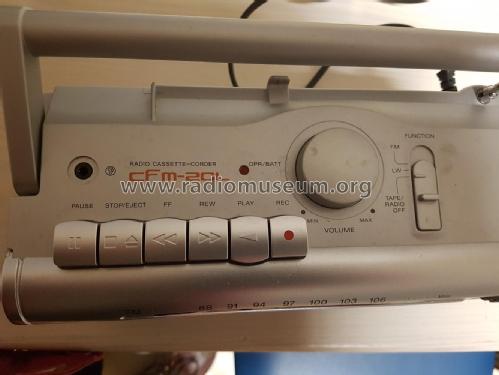

  • SONY Radio Cassette-Corder CFM-20L, carrying handle - power on LED - LW/FM/Tape radio off switch - built-in microphone - volume control - headphone output - external FM telescopic antenna - internal ferrite antenna for LW.

    Frequency ranges

    • LW 153 - 279 kHz
    • FM 87,6 - 107 MHz

    Recording system: 2 track mono - frequency response: 100 - 6300 Hz
    Power consumption 5 watt (mains). Weight incl. batteries.

    See also Sony CFM-20 with AM(MW) and FM bands.

  • Net weight (2.2 lb = 1 kg)
  • 1.8 kg / 3 lb 15.4 oz (3.965 lb)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Bernhard Nagel. See "Data change" for further contributors.
