FM/AM Cassette-Corder CF-350
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1972 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 157217
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 19
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Dry Batteries / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1.2 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: FM/AM Cassette-Corder CF-350 - Sony Corporation; Tokyo
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 251 x 158 x 60 mm / 9.9 x 6.2 x 2.4 inch
- Notes
-
An FM/AM Radio Cassette recorder/player with built-in Electret Condenser Microphone. With Auto Shut off, Variable Monitor.
19 Transistors; 9 Diodes
Radio-Kassetten-Recorder
Kondensatormikrofon eingebaut.
- Literature/Schematics (1)

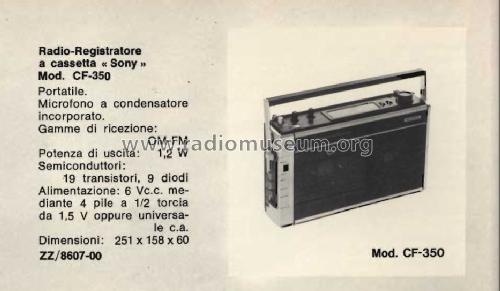

- Selezione Radio-TV Dezember 1972
- Author
- Model page created by Eduard Abfalterer. See "Data change" for further contributors.
