• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1995

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 204861

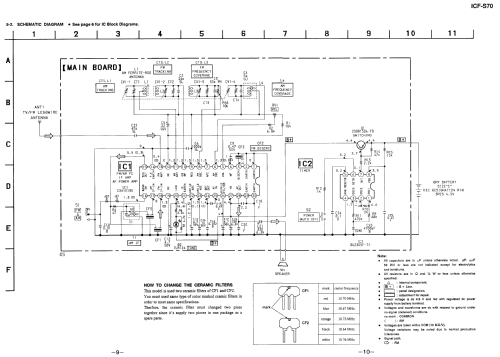

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors
• CXA1019S

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 3 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.7 cm = 3 inch

• Power out
• 0.25 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Shower-Mate ICF-S70 - Sony Corporation; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 205 x 134.5 x 61.7 mm / 8.1 x 5.3 x 2.4 inch

• Notes
• Shower Radio (Duschradio) Features:
  - Auto power off after approx. 60 minutes

• Net weight (2.2 lb = 1 kg)
• 0.575 kg / 1 lb 4.3 oz (1.267 lb)

• Mentioned in

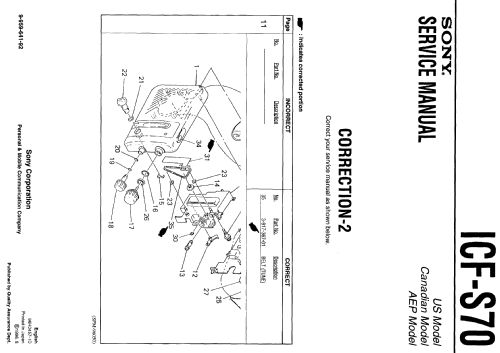

• -- Original-techn. papers. (Service-Manual)

• Author
• Model page created by Hans-Friedrich Völkening † 22.3.16. See "Data change" for further contributors.
