Six Transistor 8R-43
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1967–1969
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 299144
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / D: 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Six Transistor 8R-43 - Sony Corporation; Tokyo
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-

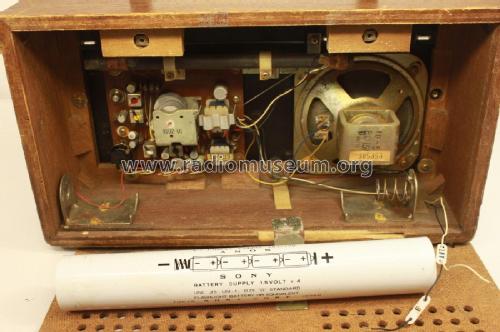

Same chassis as 8R-42 with wood case
- Price in first year of sale
- 62.50 AUS $
- Mentioned in
- Mingay's Price Service (Feb 1968 to Feb 1969.)
- Literature/Schematics (1)
- J.R. Publications Transistor Radio Service Handbook (Group C5, 1968, Page S15-1.)
- Author
- Model page created by Aldo Andreani. See "Data change" for further contributors.
- Other Models
-
Here you find 3931 models, 3791 with images and 950 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Sony Corporation; Tokyo
Collections
The model Six Transistor is part of the collections of the following members.
