Speaker System SS-3100

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1966
  • Category
  • Loudspeaker, headphone or earphone
  • Radiomuseum.org ID
  • 288420

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • 3 Loudspeakers
  • Power out
  • 30 W (50 W max.)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Speaker System SS-3100 - Sony Corporation; Tokyo
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 400 x 680 x 300 mm / 15.7 x 26.8 x 11.8 inch
  • Notes

  • 3-Weg HiFi Speaker System Model Sony SS-3100.
    System: 3-Way Bass Reflex System
    Impedance 8 Ω
    30 - 20000 Hz
    30/50 W
    Crossover: 400 / 5000 Hz

    Chassis:
    1x 300 mm Woofer (Cone Type)
    1x 160 mm Midrange (Cone Type)
    1x 50 mm Tweeter (horn)
    Finish: Walnut

  • Net weight (2.2 lb = 1 kg)
  • 25 kg / 55 lb 1.1 oz (55.066 lb)
  • Mentioned in

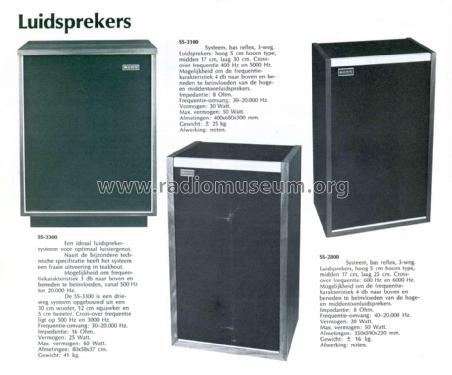

  • -- Original prospect or advert (Sony Catalogue 1970)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
