ST-H3600
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1991
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 286512
im Gedenken an Hase Dippe

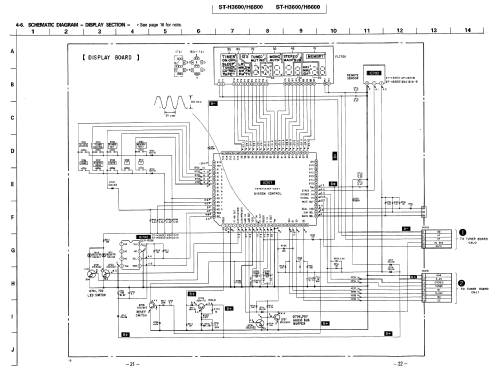

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 450/10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Powered by external power supply or a main unit.
- Loudspeaker
- - For headphones or amp.
- Material
- Various materials
- from Radiomuseum.org

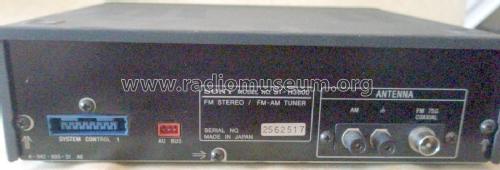

- Model: ST-H3600 - Sony Corporation; Tokyo
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 225 x 60 x 275 mm / 8.9 x 2.4 x 10.8 inch
- Notes
-
Tuner Unit for MHC-2600/3600/5600/6600 Systems.
Ceramic resonators in AM & FM IF.
- Author
- Model page created by Carlos Saavedra. See "Data change" for further contributors.
