• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1971 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 155656

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 20

• Semiconductors
• 2SC631 2SC633 2SC536 2SD28 2SC1014 10D-6

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Special Tape or Cassette-Format

• Power type and voltage
• Alternating Current supply (AC) / 100; 110; 117; 220; 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Stereo 8 Track Recorder TC-8W - Sony Corporation; Tokyo

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 329 x 263 x 172 mm / 13 x 10.4 x 6.8 inch

• Notes

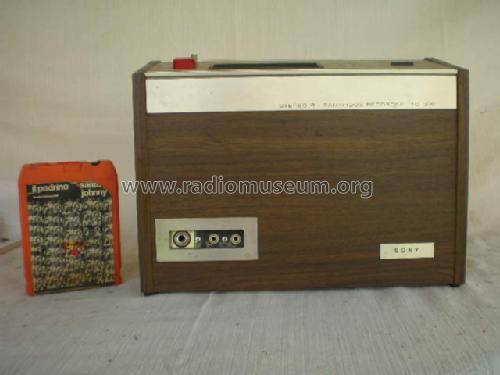

• Sony Stereo 8 Track Cartridge Recorder TC-8W;
  8-track cartridge recorder and player. Mic input connectors and headphones connector. AUX-in and Line-out. Case: wooden cabinet with metal front and bottom. A version for 117 volts/60 Hz operation exists.

  Lettore e incisore per cassette super 8.

  Transistor listed one per type. (2SC536 are 12!). Four rectifier named CD-2 are present but not in database of Radiomuseum. No data found in Internet.

• Net weight (2.2 lb = 1 kg)
• 6.7 kg / 14 lb 12.1 oz (14.758 lb)

• Mentioned in
• -- Schematic (Schemario Radio Autoradio Mangianastri edizioni "Il Rostro" marzo 1971.)

• Author
• Model page created by Fabio Masetti. See "Data change" for further contributors.
