Stereo Cassette-Corder TC-118SD

• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1977

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 209054

• Picture

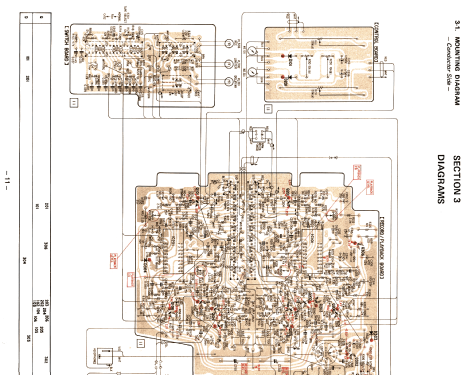

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 32

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 110-120; 220-240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Stereo Cassette-Corder TC-118SD - Sony Corporation; Tokyo

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 440 x 145 x 290 mm / 17.3 x 5.7 x 11.4 inch

• Notes
• 2-Head-Toploading Stereo Cassette-Corder with Dolby B.
  3-Digit Mechanical Counter, Analog Needle VU-Meters.
  3-Position Tape Selector (Normal, Chrome, Metal (30-15000Hz)), Peak Limiter, Record Indicator.
  17 Diodes, 1 LED.
  Optional: Headphones: Sony DR-35 or DR-45. Microphone Sony ECM-99A, ECM-990, ECM-250.
  Front Silvermetallic.

• Net weight (2.2 lb = 1 kg)
• 6.3 kg / 13 lb 14 oz (13.877 lb)

• Price in first year of sale
• 900.00 DM

• Source of data
• -- Original-techn. papers.

• Mentioned in
• -- Schematic

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
