• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1990 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 360279

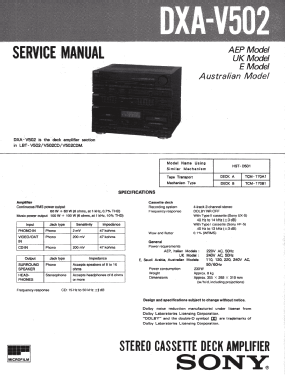

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player; Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 120 W (200 W max.)

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Cassette Deck Amplifier DXA-V502 - Sony Corporation; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 355 x 288 x 319 mm / 14 x 11.3 x 12.6 inch

• Notes

• Sony DXA-V502 Stereo Cassette Deck Amplifier used in Sony LBT-V502 Compact HiFi Component System.

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Author
• Model page created by David Erali. See "Data change" for further contributors.
