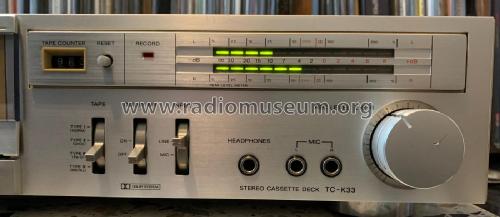

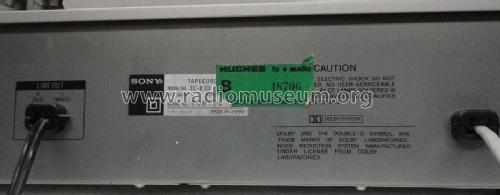

Stereo Cassette Deck TC-K33

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1985 ??
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 275585

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Cassette Deck TC-K33 - Sony Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 110 x 310 mm / 16.9 x 4.3 x 12.2 inch
  • Notes

  • Sony Stereo Cassette Deck TC-K33

    Type: 2-head, single compact cassette deck
    Track System: 4-track, 2-channel stereo
    Tape Speed: 4.75 cm/s
    Heads: 1 x record/playback, 1 x erase
    Tape Type: type I, CrO2, Metal
    Noise Reduction: Dolby B

    Frequency Response: DOLBY NR OFF

    20Hz to 16kHz  Type IV (Sony Metallic)
    20Hz to 16kHz Type III (Sony Fe-Cr)
    20Hz to 15kHz  Type II (Sony EHF)
    20Hz to 14kHz  Type I (Sony HFX)

    Signal to Noise Ratio:
    DOLBY NR OFF 58dB (with Sony Metallic)
    DOLBY NR ON improved 5dB at 1 kHz, 10dB above 5 kHz (with Sony Metallic)

    Wow and Flutter: 0.07% WRMS (NAB)
    Total Harmonic Distortion: 1.0% (with Sony Metallic and Fe-Cr cassettes)
    Bias Frequency: 105kHz

    Input: 77.5mV (line), 0.25mV (mic)
    Output: 0.435V (line)

  • Net weight (2.2 lb = 1 kg)
  • 4.430 kg / 9 lb 12.1 oz (9.758 lb)
