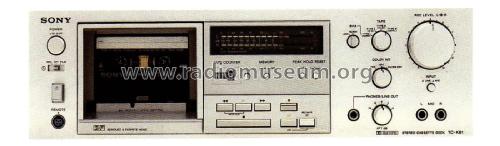

Stereo Cassette Deck TC-K61

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1980
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 289587

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Cassette Deck TC-K61 - Sony Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 130 x 295 mm / 16.9 x 5.1 x 11.6 inch
  • Notes

  • Sony Frontloading Stereo Cassette Tape Deck Model TC-K61
    Type: 2-head, single compact cassette deck, Track System: 4-track, 2-channel stereo, Tape Speed: 4.8 cm/s, Heads: 1 x record/playback, 1 x erase, Tape Type: type I, FeCr, CrO2, Metal, Noise Reduction: B, Frequency Response: 20Hz to 19kHz  (Metal tape)
    Signal to Noise Ratio: 64dB  (dolby B), Wow and Flutter: 0.04%, Total Harmonic Distortion: 1.0%, Input: 77.5mV (line), 0.25mV (mic), 3 digit analog Tape Counter, LED Peak Program Meters with 2 types of Peak Hold, Finish: Silver metallic, Optional: Remote Control Sony RM-50

  • Net weight (2.2 lb = 1 kg)
  • 5.6 kg / 12 lb 5.4 oz (12.335 lb)
  • Mentioned in
  • -- Original-techn. papers. (Service & Owners Manual)
  • Literature/Schematics (1)
  • -- Original prospect or advert (Sony Ctalogue - 'Cassette Decks')
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
