• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1990

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 275314

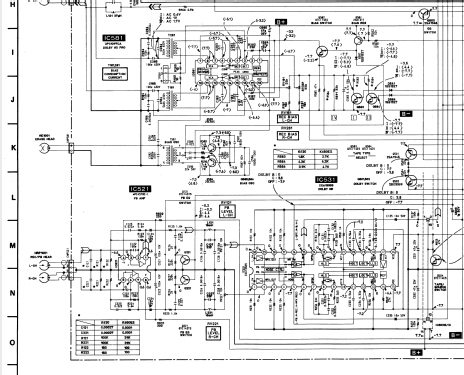

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 56

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Cassette Deck TC-K620 - Sony Corporation; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 430 x 123 x 285 mm / 16.9 x 4.8 x 11.2 inch

• Net weight (2.2 lb = 1 kg)
• 4.9 kg / 10 lb 12.7 oz (10.793 lb)

• Author
• Model page created by Erik Thomsen. See "Data change" for further contributors.
