• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1978 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 224287

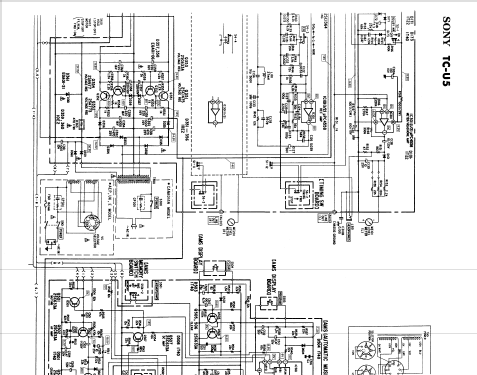

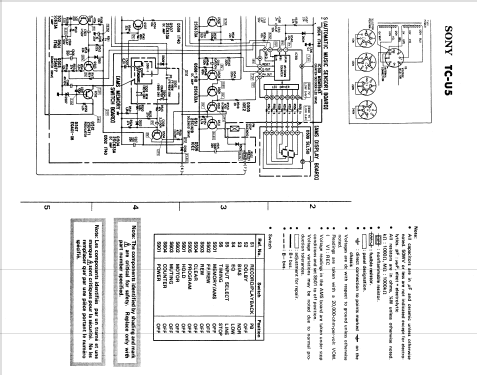

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 110; 120; 220; 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Cassette Deck TC-U5 - Sony Corporation; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 410 x 145 x 290 mm / 16.1 x 5.7 x 11.4 inch

• Notes

• Type: 2-head, single compact cassette deck
  Track System: 4-track, 2-channel stereo
  Tape Speed: 4.8 cm/s
  Heads: 1 x record/playback, 1 x erase
  Tape Type: type I, CrO2, FeCr
  Noise Reduction: B
  Frequency Response: 20Hz to 17kHz  (Cr02 tape)
  Signal to Noise Ratio: 68dB  (dolby B)
  Wow and Flutter: 0.06%
  Total Harmonic Distortion: 1.3%
  Input: 77.5mV (line), 0.25mV (mic)
  Output: 0.44V (line)

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Author
• Model page created by Jürgen Küting. See "Data change" for further contributors.
