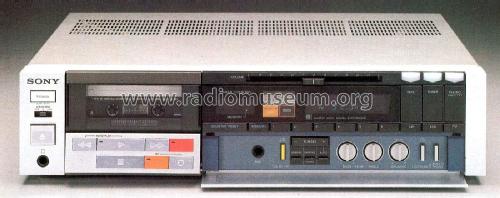

Stereo Deck Receiver - Casseiver X0-7 (XO-7)

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1980 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 341573

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Cassette-Recorder or -Player; Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 56 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Deck Receiver - Casseiver X0-7 - Sony Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 105 x 395 mm / 16.9 x 4.1 x 15.6 inch
  • Notes

  • 3-Band Stereo Deck Receiver (Casseiver) Model Sony X0-7

    Verstärker:
    - 2 x 28 Watt sinus
    - THD <0,05%
    - Bass-, Treble Control, Loudness

    Tuner:
    - FM 87,5-108MHz
    - MW 522 - 1602 kHz
    - LW 150-350 kHz

    Cassettendeck:
    - 4-track 2-channel stereo, Dolby B NR
    - Metal tape capability, 30 - 17000 Hz
    - Auto Play, Auto Stop
    - 3-digit tape counter

    Memory Backup power: 3 V DC, 2x AA 1,5 V

    Models available:
    - US, Canadian Model - 120 VAC, 60 Hz
    - AEP Model: 220 VAC - 50/60 Hz
    - UK Model - 240 VAC, 50 Hz
    - E Model - 110, 120, 220, 240 VAC adjustable, 50/60Hz

  • Net weight (2.2 lb = 1 kg)
  • 9.1 kg / 20 lb 0.7 oz (20.044 lb)
  • Price in first year of sale
  • 1,248.00 DM
  • Mentioned in
  • - - Manufacturers Literature
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
