• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1979

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 168862

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 468 / 10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 100 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

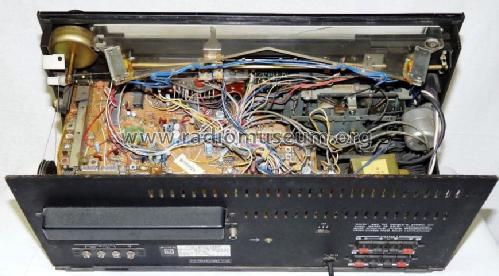

• Model: Stereo Music System HST-49AB - Sony Corporation; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 455 x 225 x 247 mm / 17.9 x 8.9 x 9.7 inch

• Notes
• HI-FI-Kombination mit Dolby NR-Recorder, Frequenzbereiche: UKW 87,5..108 MHz, MW 530..1605 kHz, LW 150..350 kHz, KW 5,8..15,8 MHz, Antenneneingang 240 Ohm, LED-Signalanzeige, 2 schaltbare Lautsprechergruppen je 50 Watt (8 Ohm), Anzeige der Ausgangsleistung über 2-LED-Zeilen, Loudness zuschaltbar, Eingänge: 2 x Mikrofon (Mix-Funktion) / Aux / Phono, Anschluß für Tonbandgerät (5 pol-Din Buchse), Kopfhöreranschluß über Klinkenbuchse (6,3 mm), Made in Korea

• Net weight (2.2 lb = 1 kg)
• 7.8 kg / 17 lb 2.9 oz (17.181 lb)

• Author
• Model page created by Museum Roggenhofer. See "Data change" for further contributors.
