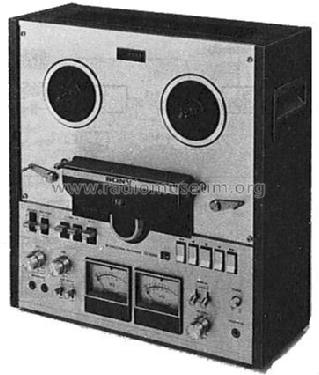

Stereo Tapecorder TC-558

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1974
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 250969

 Technical Specifications

  • Number of Transistors
  • 46
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Tape Recorder
  • Power type and voltage
  • Alternating Current supply (AC) / 120 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Stereo Tapecorder TC-558 - Sony Corporation; Tokyo
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 425 x 458 x 213 mm / 16.7 x 18 x 8.4 inch
  • Notes

  • Sony Stereo Tapecorder Model TC-558.
    2x Mic IN, 2x Line IN, 2x Line OUT, Headphone 8 ohms
    AC Outlet: AC 120V Unswitched 300 Watts max.
    Heads:
    Record: RF140-2902 (2)
    Playback: PF140-4202 (2)
    Erase: EF18-2902A2 (2)
    Motors:
    Capstan: UC214G (1)
    Reel: UC624K (2)
    2x IC, 2x FET's, 46x Transistors, 44x Diodes
    Power Consumption 100 Watts


  • Net weight (2.2 lb = 1 kg)
  • 20.8 kg / 45 lb 13 oz (45.815 lb)
  • Mentioned in
  • - - Manufacturers Literature
  • Literature/Schematics (1)
  • Funk-Technik (FT) (19/1974, S. 665 / Werbeanzeige, Neuvorstellung)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
