FM Stereo / FM-AM Receiver STR-7065A UK/AEP/GEP model

• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1975/1976

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 160339

• Picture

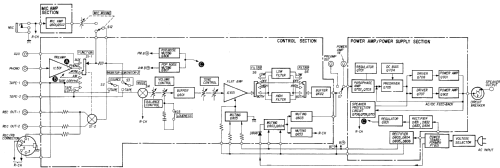

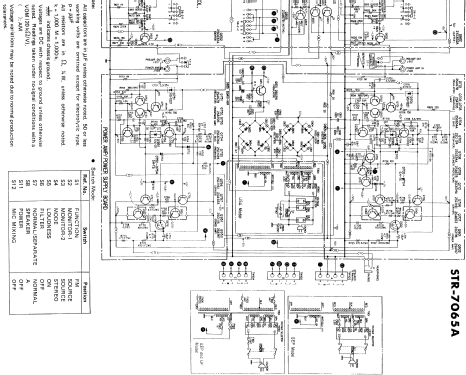

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 53

• Semiconductors

• Main principle
• Superhet with RF-stage; ZF/IF 455 or 468/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 50/60 Hz: 100/110; 120/127; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 140 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org
• Model: FM Stereo / FM-AM Receiver STR-7065A [UK/AEP/GEP model] - Sony Corporation; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 440 x 148 x 375 mm / 17.3 x 5.8 x 14.8 inch

• Notes

• FM/AM-Receiver Model Sony STR-7065A

  4-gang FM tuner 87.5 - 108 MHz, 20 - 15000Hz +/- 1 dB
  2-gang AM tuner 530 - 1605 kHz
  2 x 70 W continuous RMS into 8 Ω, 2 x 85 W continuous RMS into 4 Ω
  2 x 120 W dynamic power output into 8 Ω, 2 x 190 W dynamic power output into 4 Ω
  Tape-to-Tape
  Loudness
  Bass-/Treble-Control
  Muting
  Speakers A, B, C or A+B and A+C
  Power consumption: 370 W
  Finish: front in silver metallic, case in anthracite

  Optional enclosures:
  Sony TAC-5N Walnut
  Sony HA-4A Acryl

  Mains power requirements:
  GEP model: 50/60 Hz, 100, 120, 220, 240 VAC (has IF of 455 kHz)
  UK and AEP model: 50/60 Hz; 110, 127, 220, 240 VAC (has IF of 468 kHz)

  Semiconductors:
  7 ICs, 4 FETs, 49  transistors, 34 diodes

  This model also exists in a version for the US market with slightly different dimensions and power requirements, see STR-7065A [USA model].

• Net weight (2.2 lb = 1 kg)
• 13.2 kg / 29 lb 1.2 oz (29.075 lb)

• Source of data
• -- Original prospect or advert

• Mentioned in
• - - Manufacturers Literature

• Literature/Schematics (1)
• SONY Catalogs (1976 - HiFi-Stereo/Quadro-Geräte - Page 4&35)

• Author
• Model page created by Ralf Kläs. See "Data change" for further contributors.
