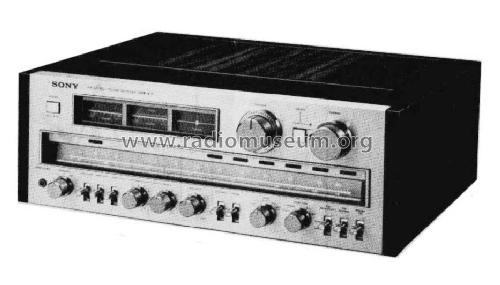

FM Stereo/FM-AM Receiver STR-V7

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1978–1981
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 146080

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 73
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 120; 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 300 W (400 W max.)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: FM Stereo/FM-AM Receiver STR-V7 - Sony Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 525 x 195 x 450 mm / 20.7 x 7.7 x 17.7 inch
  • Notes
  • ICs: 8
    AM/FM-Stereo-Receiver mit 2× 150 Watt (Sinus) an 8 Ohm. Leistungsbandbreite 10–35000 Hz.
  • Net weight (2.2 lb = 1 kg)
  • 21 kg / 46 lb 4.1 oz (46.256 lb)
  • Source of data

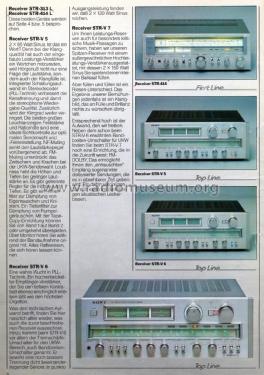

  • -- Original prospect or advert
  • Mentioned in
  • Funkschau ((21/1978, S. 1001))
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
