• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 119785

Click on the schematic thumbnail to request the schematic as a free document.

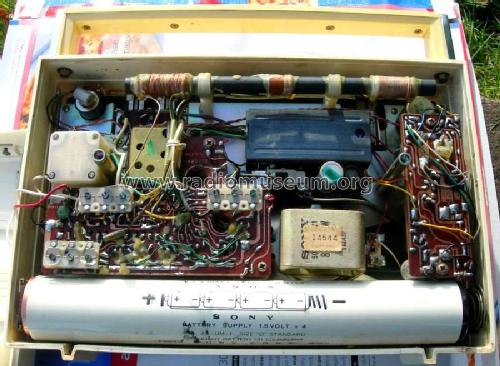

• Number of Transistors
• 14

• Semiconductors
• 2SA455 2SA455 2SA456 2SC403 2SC403 2SC403 2SC403 2SC403 2SC401 2SC402 2SC401 2SB383 2SB383 2SB379 1T26

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1.3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

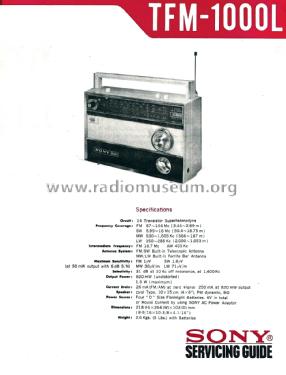

• Model: 14 Transistor Super Sensitive TFM-1000 L - Sony Corporation; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 265 x 215 x 105 mm / 10.4 x 8.5 x 4.1 inch

• Notes
• Sockets : MPX Out, Aux In, Tape Recorder, Earphone, Ext 6 volt PSU, External antenna. Fitted with light switch, tuning meter and fine tuning.

• Net weight (2.2 lb = 1 kg)
• 2.2 kg / 4 lb 13.5 oz (4.846 lb)

• Price in first year of sale
• 39.00 GBP

• Source of data
• Handbuch VDRG 1968/1969

• Author
• Model page created by Howard Craven. See "Data change" for further contributors.
