• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1958/1959 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 342174

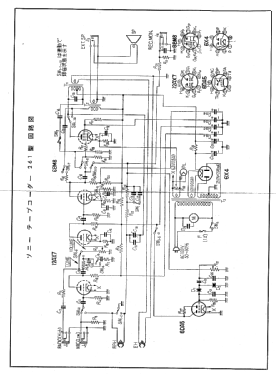

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 12AX7 6BM8 6X4 6DA5

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 100 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (max.)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Tapecorder TC-261 - Sony Corporation; Tokyo

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 380 x 190 x 295 mm / 15 x 7.5 x 11.6 inch

• Notes

• Tape speeds 3¾ and 7½ ips (9.52 and 19.05 cm/s).

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Wadim Maximov. See "Data change" for further contributors.
