TC133CS
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1971–1975 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 114181
Sony Print Ad 1973

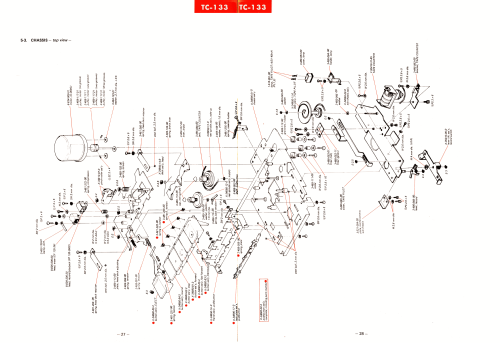

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 13
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 240 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: TC133CS - Sony Corporation; Tokyo
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 398 x 196 x 311 mm / 15.7 x 7.7 x 12.2 inch
- Notes
- Stereo-Kassettengerät, auch als Vierspur-Mono-Gerät nutzbar; Übertragungsbereich: 30···13000 Hz. Eingänge: Mikrofon, Tonband, Plattenspieler, Radio. Überspielen mit vielfacher Bandgeschwindigkeit möglich (Eingang für Schnellüberspielen). Ausgangsleistung: 2× 6 Watt an 8 Ohm.
- Net weight (2.2 lb = 1 kg)
- 8 kg / 17 lb 9.9 oz (17.621 lb)
- Literature/Schematics (1)
- Magnetofony 2, 1971-1975, Bozdech J.
- Author
- Model page created by Wolfgang Lill. See "Data change" for further contributors.
