• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1973/1974

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 85485

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 10.5 cm = 4.1 inch

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

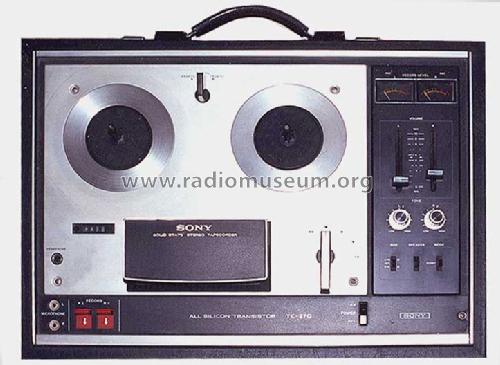

• Model: TC-270 - Sony Corporation; Tokyo

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 513 x 260 x 387 mm / 20.2 x 10.2 x 15.2 inch

• Notes

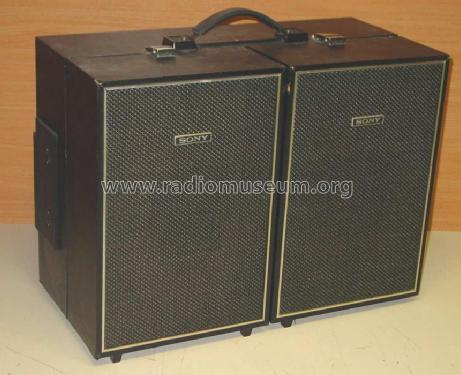

• Lautsprecher können abgenommen werden, sie dienen als Abdeckung. Vierkanal, Mono/Stereo, 4,75/9,5/19 cm/sec.; 1 Synchron-Motor, 2 Tonköpfe.

• Net weight (2.2 lb = 1 kg)
• 16.5 kg / 36 lb 5.5 oz (36.344 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.
