• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1968 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 114452

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 6267 6AN8 6BM8

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 6 taps: 100; 110; 117; 125; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 4 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org

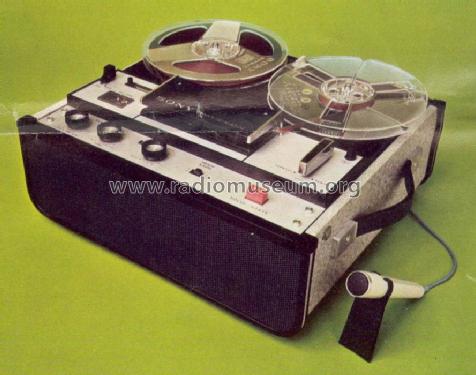

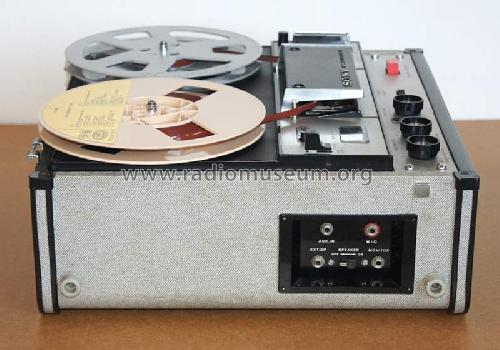

• Model: TC-105 [Tubes] - Sony Corporation; Tokyo

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 375 x 185 x 340 mm / 14.8 x 7.3 x 13.4 inch

• Notes
• Reel-to-reel tape recorder, monaural, four tracks, three speeds (4,75 / 9,5 / 19 cm/sec.).

• Net weight (2.2 lb = 1 kg)
• 9.5 kg / 20 lb 14.8 oz (20.925 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Martin Bösch. See "Data change" for further contributors.
