• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1972 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 157212

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2SC631 2SC633 2SC633 2SC633 2SB495 2SB495 2SB382 2SB383 or. 2SB495 1T22 1T22 10D-2 10D-2 10D-2 10D-2

• Wave bands
• - without

• Details

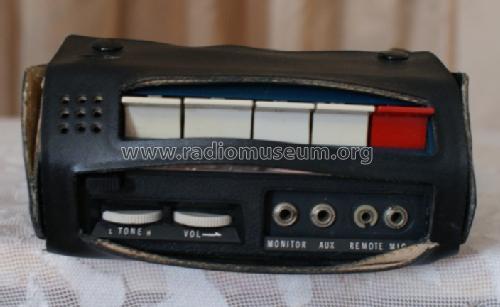

• Cassette-Recorder or -Player

• Power type and voltage

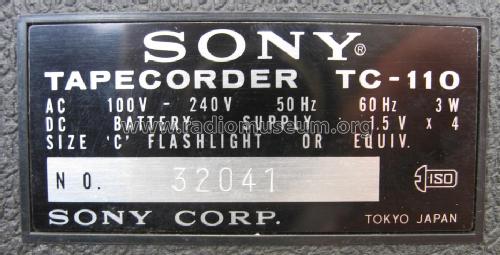

• Line / Batteries (any type) / 100; 110-120; 220-240 /size "C" 4 x 1,5 or NiCd: 4 x 1,25 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: TC-110 - Sony Corporation; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 140 x 60 x 237 mm / 5.5 x 2.4 x 9.3 inch

• Notes

• 8 Transistors; 7 Diodes.

  This cassette recorder can work with mains voltage, with a pack of 5 V (4x 1.25 V NiCd) rechargeable batteries or with 4 "C" size 1.5 V batteries.
  Built-in electret microphone.

• Literature/Schematics (1)
• Selezione Radio-TV Dezember 1972

• Literature/Schematics (2)
• -- Schematic (Schemario Radio Autoradio Mangianastri edizioni "Il Rostro" marzo 1971.)

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.
