• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1965–1967

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 114477

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 6AU6 6AV6 6MP17

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 120; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm

• Power out
• 1.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Sony-O-Matic TC-135 - Sony Corporation; Tokyo

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 238 x 140 x 280 mm / 9.4 x 5.5 x 11 inch

• Notes

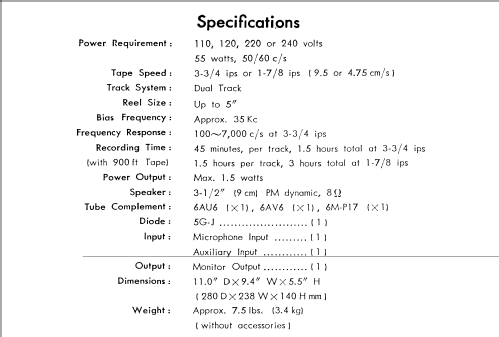

• "Sony-O-Matic" 2-speed, 1⅞ and 3¾ ips (4,75/9,5 cm/sec.), twin track, mains operated, with dynamic microphone (Type F-66).

  Reel Size: Up to 5"
  Recording Time (with 900' tape): 1.5 hrs total at 3¾ ips and 3 hrs total at 1⅞ ips
  Track System: Dual
  Frequency Response: 100~7,000 Hz at 3¾ ips
  Bias Frequency: Approx. 35 Hz
  Inputs: Microphone and Auxiliary Input
  Outputs: Monitor Output.

• Net weight (2.2 lb = 1 kg)
• 3.4 kg / 7 lb 7.8 oz (7.489 lb)

• Price in first year of sale
• 94.50 AUS $

• Mentioned in
• Mingay's Price Service (Feb 1966 to Aug 1967.)

• Literature/Schematics (1)

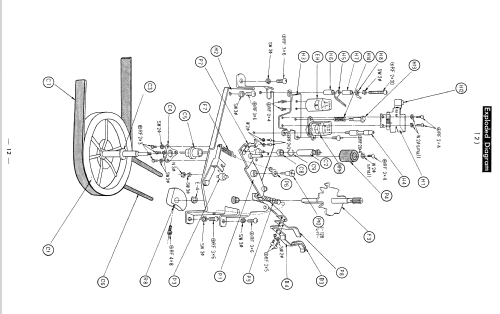

• -- Original-techn. papers. (Sony Service Data 1, Page 25-27.)

• Author
• Model page created by Martin Bösch. See "Data change" for further contributors.
