TC-252

Sony Corporation; Tokyo

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Sony Corporation; Tokyo

Year
1969

Category
Sound/Video Recorder and/or Player

Radiomuseum.org ID
100417

Schematics

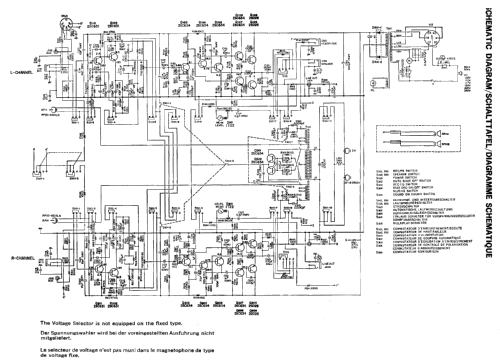

TC-252; Sony Corporation; (ID = 234826) R-Player — Sony Corporation; TC-252 (3)

TC-252; Sony Corporation; (ID = 556852) R-Player — Sony Corporation; TC-252 (3)

TC-252; Sony Corporation; (ID = 556853) R-Player — Sony Corporation; TC-252 (3)

TC-252; Sony Corporation; (ID = 556854) R-Player — Sony Corporation; TC-252 (3)

TC-252; Sony Corporation; (ID = 2167815) R-Player — Sony Corporation; TC-252 (1)

TC-252; Sony Corporation; (ID = 2167820) R-Player — Sony Corporation; TC-252 (1)

TC-252; Sony Corporation; (ID = 2167816) R-Player — Sony Corporation; TC-252 (1)

TC-252; Sony Corporation; (ID = 2167817) R-Player — Sony Corporation; TC-252 (1)

TC-252; Sony Corporation; (ID = 2167818) R-Player — Sony Corporation; TC-252 (1)

TC-252; Sony Corporation; (ID = 2167819) R-Player — Sony Corporation; TC-252 (1)

TC-252; Sony Corporation; (ID = 233219) R-Player — Sony Corporation; TC-252 (1)

TC-252; Sony Corporation; (ID = 1785242) R-Player — Sony Corporation; TC-252 (2)

TC-252; Sony Corporation; (ID = 233221) R-Player — Sony Corporation; TC-252 (1)

TC-252; Sony Corporation; (ID = 233222) R-Player — Sony Corporation; TC-252 (1)

TC-252; Sony Corporation; (ID = 247244) R-Player — Sony Corporation; TC-252 (2)
Gerät eines Sammlerkollegen

TC-252; Sony Corporation; (ID = 247245) R-Player — Sony Corporation; TC-252 (2)
Gerät eines Sammlerkollegen

TC-252; Sony Corporation; (ID = 308442) R-Player — Sony Corporation; TC-252 (2)

TC-252; Sony Corporation; (ID = 308443) R-Player — Sony Corporation; TC-252 (2)

TC-252; Sony Corporation; (ID = 308444) R-Player — Sony Corporation; TC-252 (2)

TC-252; Sony Corporation; (ID = 664377) R-Player — Sony Corporation; TC-252 (2)
Original manual.

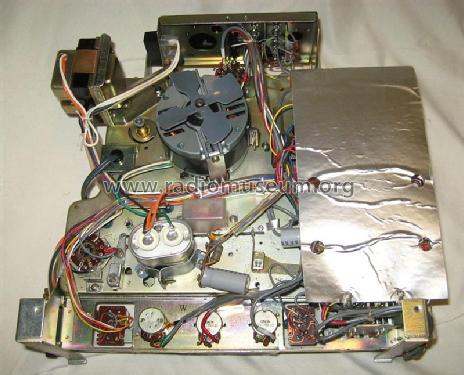

TC-252; Sony Corporation; (ID = 1437154) R-Player — Sony Corporation; TC-252 (1)

TC-252; Sony Corporation; (ID = 1437155) R-Player — Sony Corporation; TC-252 (1)

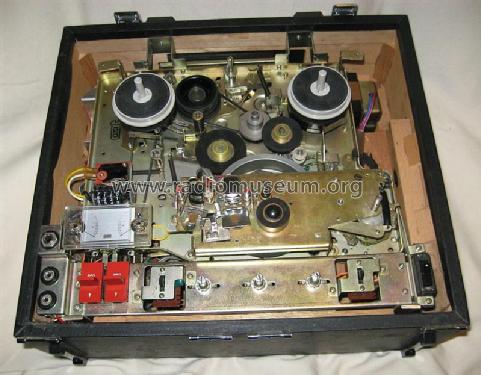

TC-252; Sony Corporation; (ID = 1437156) R-Player — Sony Corporation; TC-252 (1)

TC-252; Sony Corporation; (ID = 1437157) R-Player — Sony Corporation; TC-252 (1)

TC-252; Sony Corporation; (ID = 1642927) R-Player — Sony Corporation; TC-252 (2)

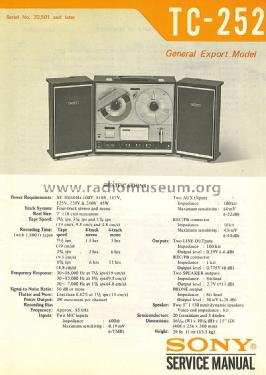

Service Manual

TC-252; Sony Corporation; (ID = 1775691) R-Player — Sony Corporation; TC-252 (2)
Owners Manual

TC-252; Sony Corporation; (ID = 1775692) R-Player — Sony Corporation; TC-252 (2)
Owners Manual

TC-252; Sony Corporation; (ID = 1775693) R-Player — Sony Corporation; TC-252 (2)
Owners Manual

TC-252; Sony Corporation; (ID = 1775694) R-Player — Sony Corporation; TC-252 (2)
Owners Manual

TC-252; Sony Corporation; (ID = 1775695) R-Player — Sony Corporation; TC-252 (2)
Owners Manual

TC-252; Sony Corporation; (ID = 2443005) R-Player — Sony Corporation; TC-252 (1)

TC-252; Sony Corporation; (ID = 2861934) R-Player — Sony Corporation; TC-252 (1)

TC-252; Sony Corporation; (ID = 2903021) R-Player — Sony Corporation; TC-252 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
20

Semiconductors

Main principle
Audio-Amplification

Wave bands
- without

Details
Tape Recorder

Power type and voltage
Alternating Current supply (AC) / 110-240 V Volt

Loudspeaker
2 Loudspeakers

Power out
12 W (unknown quality)

Material
Wooden case

from Radiomuseum.org
Model: TC-252 - Sony Corporation; Tokyo

Dimensions (WHD)
408 x 256 x 380 mm / 16.1 x 10.1 x 15 inch

Notes
The Sony TC-252 is a stereo taperecorder: 4 tracks mono and stereo; Speeds: 19/9,5/4,8 cm/s.
Système d'enregistrement: 4 pistes en stéréo ou Mono. Vitesse de la bande: 19/9,5/4,8cm/s.
Das Modell Sony TC-252 (TC252) ist ein Stereo-Tonbandgerät für 4-Spur-Mono und Stereo mit Bandgeschwindigkeiten von 19; 9,5 und 4,8 cm/s.

Tape speed: 7 1/2 ips, 3 3/4 ips, 1 7/8 ips
Reels: up to 7"
Recording system: 4 track stereophonic or monophonic
Frequency responce: 30-18000Hz at 7 1/2 ips
30-13000Hz at 3 3/4 ips
30-7000Hz at 1 7/8 ips
Signal to noise ratio: 50dB
Flutter and flow: 0.12% at 7 1/2 ips
0.15% at 7 1/2 ips
0.2% at 7 1/2 ips
Recording time: maximum 6 hours at 7 1/2 ips with 1800ft tape
Inputs:
Microphone inputs
Sensitivity: -72dB (0.19mV)
Impedance: 600Ohms
Auxiliary inputs
Sensitivity: -26dB (0.04mV)
Impedance: 100kOhms

Net weight (2.2 lb = 1 kg)
13.5 kg / 29 lb 11.8 oz (29.736 lb)

Price in first year of sale
1,490.00

Other Models
Here you find 3922 models, 3782 with images and 950 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
