• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1966

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 114440

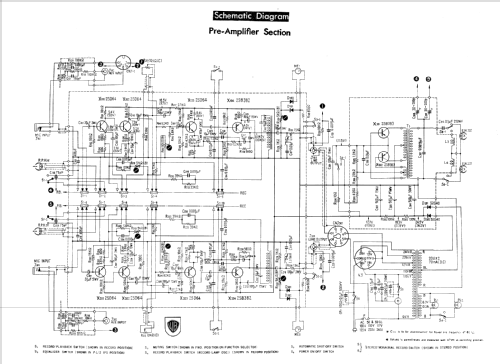

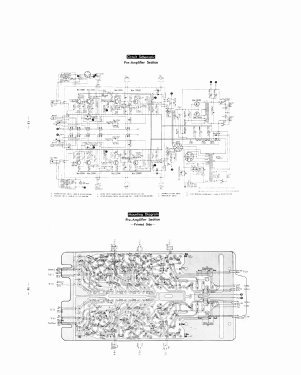

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 21

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 100; 110; 117; 125; 220; 240 Volt

• Loudspeaker
• - For headphones or amp.

• Power out
• 5 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org
• Model: TC-260 - Sony Corporation; Tokyo

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 541 x 392 x 200 mm / 21.3 x 15.4 x 7.9 inch

• Notes

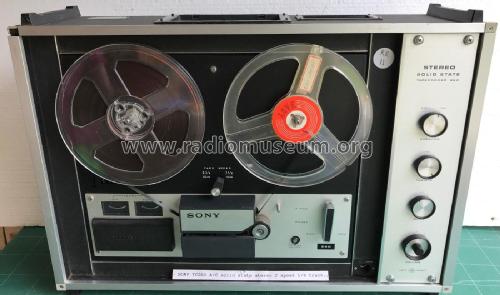

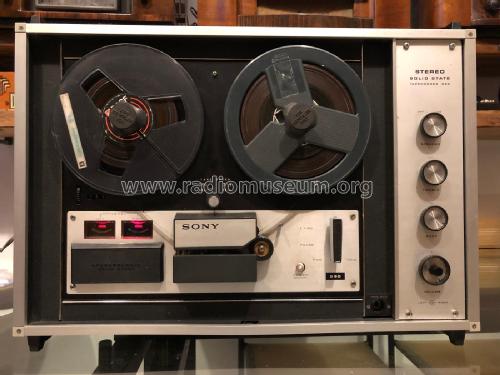

• Reel-to-reel tape recorder, stereo, four tracks, two speeds (9,5/19 cm/sec.).
  Optional F-96 dynamic microphone.

• Net weight (2.2 lb = 1 kg)
• 15.5 kg / 34 lb 2.3 oz (34.141 lb)

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Martin Bösch. See "Data change" for further contributors.
