TC-630
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1971
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 138023

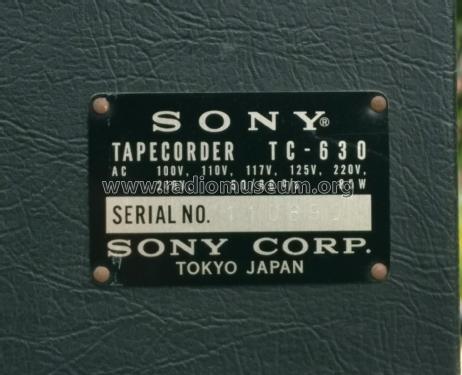

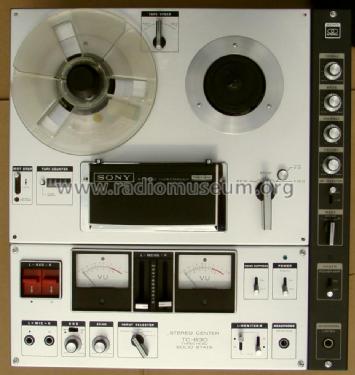

By courtesy of Lauritz.com (Bild bearbeitet)

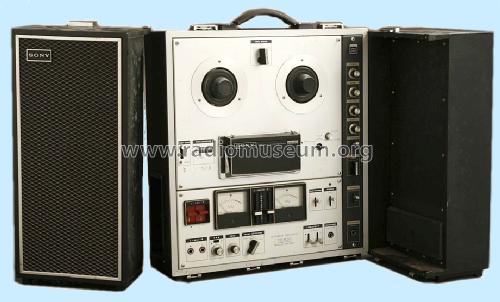

By courtesy of Lauritz.com (Bild bearbeitet)

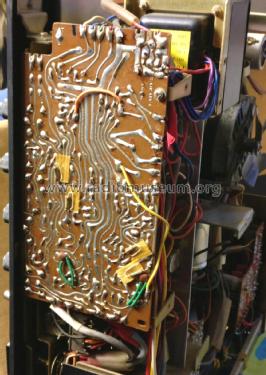

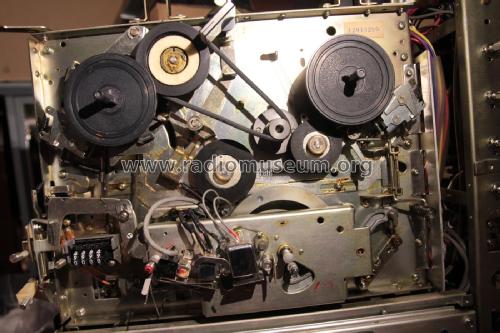

Gerät aus Koffer ausgebaut

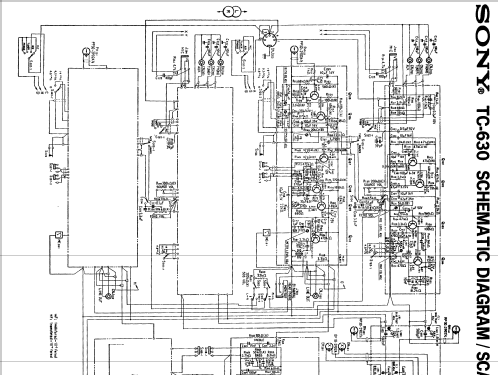

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 40
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 100; 115; 117; 125; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 30 W (undistorted)
- Material
- Various materials
- from Radiomuseum.org
- Model: TC-630 - Sony Corporation; Tokyo
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 454 x 506 x 294 mm / 17.9 x 19.9 x 11.6 inch
- Notes
-
Das Sony TC-630 ist ein Spulentonbandgerät 18cm, Viertelspur, mit 3 Köpfen, abnehmbaren Boxen, volltransistorisiert.
Track system: 4-track, 2-channel, stereo/monaural system
Heads: 1 x playback, 1 x record, 1 x erase
Reel size: up to 7 inch reel
Tape speeds: 1 7⁄8 3 3⁄4 7 1⁄2 ipsWow and flutter: 0.09
Frequency response: 30Hz to 22kHz
Signal to Noise Ratio: 50dB
Total harmonic distortion: 1.2%
Input: 60mV (line), 0.2mV (mic)
Output: 0.775V (line)
Rated Power output: 2x15 watts at 8ohms
- Net weight (2.2 lb = 1 kg)
- 21 kg / 46 lb 4.1 oz (46.256 lb)
- Source of data
- - - Data from my own collection
