• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1970 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 158663

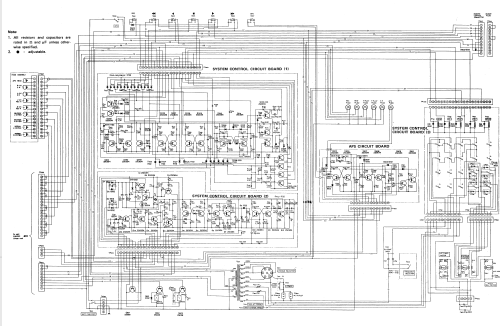

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 74

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 100; 110; 117; 120; 125; 220; 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org

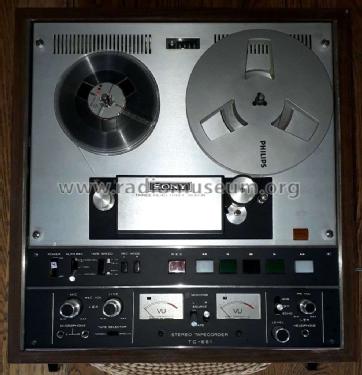

• Model: TC-651 - Sony Corporation; Tokyo

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 122 x 457 x 243 mm / 4.8 x 18 x 9.6 inch

• Notes
• Four Track Stereo Record & Playback
  Three Heads for Tape/Source Monitoring 4.Head Allows Auto Reverse Playback
  Illuminated Color-Coded Feather-Touch Pushbutton Controls
  Large,Illuminated VU Meters,calibrated to NAB Standards
  Microphone /Line Mixing
  Fully Adjustable Bias & EQ Adjustments

• Net weight (2.2 lb = 1 kg)
• 20.2 kg / 44 lb 7.9 oz (44.493 lb)

• Literature/Schematics (1)
• Selezione Radio-TV Agosto 1972

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.
