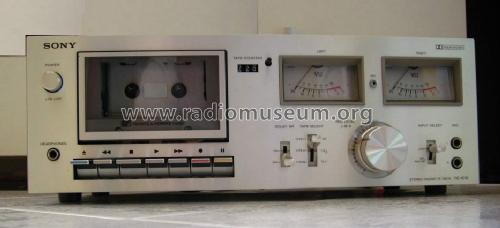

TC-K15
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1979
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 160846

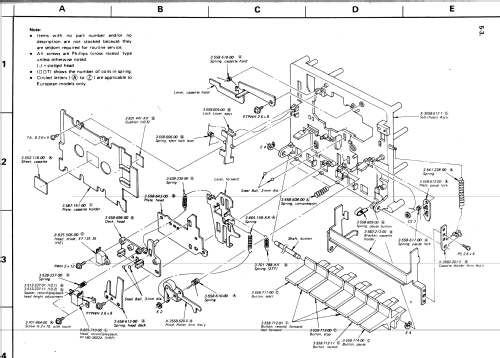

Service manual.
Operating Instructions: page 6
Operating Instructions: page 8 and 11

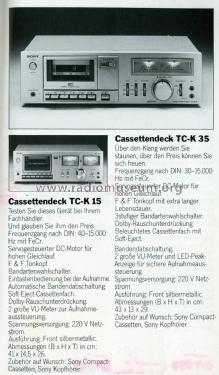

Sony Catalogue IFA 1979
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Alternating Current supply (AC) / 110; 120; 220; 240 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: TC-K15 - Sony Corporation; Tokyo
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 440 x 145 x 260 mm / 17.3 x 5.7 x 10.2 inch
- Notes

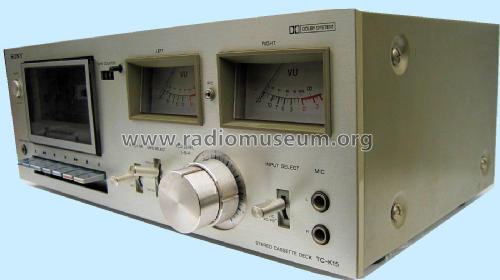

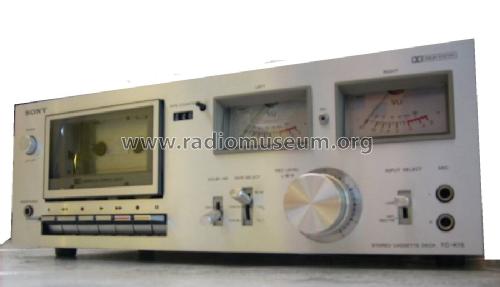

- Stereo cassette deck.
40 - 15.000 Hz. Dolby NR.
Silvermetallic.
- Net weight (2.2 lb = 1 kg)
- 4.6 kg / 10 lb 2.1 oz (10.132 lb)
- Price in first year of sale
- 319.00 DM
- Source of data
- - - Manufacturers Literature
- Mentioned in
- Sony Katalog - IFA 1979 - Seite 65
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
