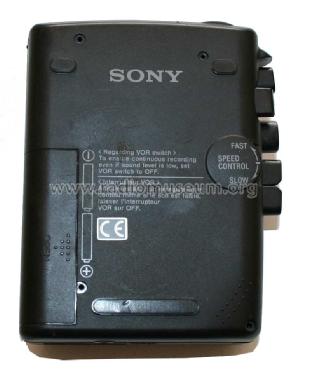

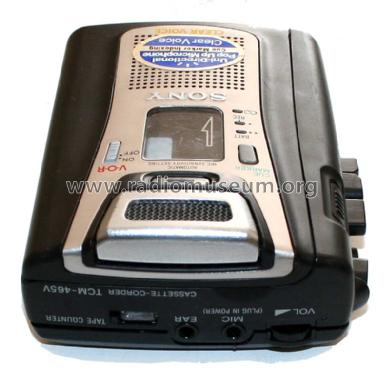

Cassette-Corder TCM-465V

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1998
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 215537

 Technical Specifications

  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Batteries / addl. power jack / AA: 2 x 1,5 / 3 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.6 cm = 1.4 inch
  • Power out
  • 0.3 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Cassette-Corder TCM-465V - Sony Corporation; Tokyo
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 91 x 116 x 37.2 mm / 3.6 x 4.6 x 1.5 inch
  • Notes

  • Cassette-Corder TCM-465V.
    Dictaphone 2-track 1 channel mono.
    Frequency range: 250-6300 Hz.
    Power output 300 mW (at 10% harmonic distortion).
    Input: Internal microphone and  microphone input jack, sensitivity 0,2 mV.
    Output: Internal loudspeaker and earphone jack for 8-300 ohms.
    Variable range of the tape speed. VOR-sytem (Voice Operated Recording)

    Registratore-Riproduttore tascabile, munito di speed-control, contatore nastro, microfono direzionale e cue marker.

  • Net weight (2.2 lb = 1 kg)
  • 0.2 kg / 0 lb 7 oz (0.441 lb)
  • Author
  • Model page created by Antonio Maida. See "Data change" for further contributors.
