• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1992

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 119926

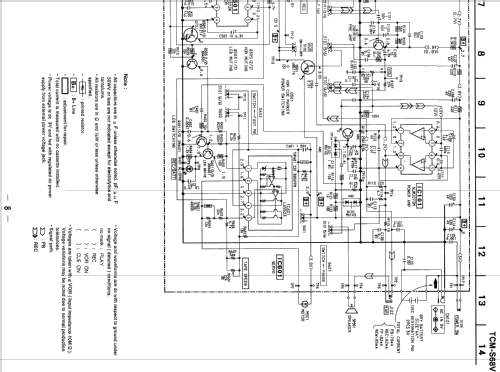

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 1

• Semiconductors

• Power type and voltage
• Dry Batteries / 2 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 cm = 1.6 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: TCM-S68V - Sony Corporation; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 94 x 120 x 40 mm / 3.7 x 4.7 x 1.6 inch

• Net weight (2.2 lb = 1 kg)
• 0.3 kg / 0 lb 10.6 oz (0.661 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Ervé Leclercq. See "Data change" for further contributors.
