• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1995 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 234168

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Power out
• 0.23 W (undistorted)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

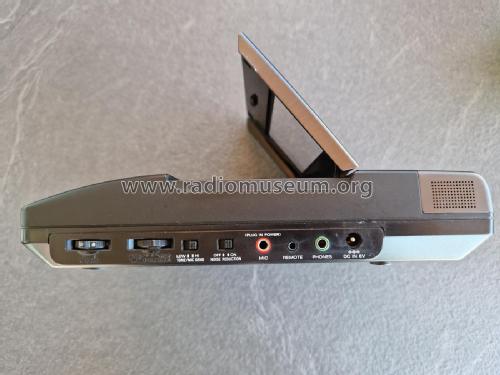

• Model: TCS-2000 - Sony Corporation; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 130 x 202 x 42 mm / 5.1 x 8 x 1.7 inch

• Notes

• 4 track 2 channel stereo

  output jack stereo 6mW + 6mW



• Net weight (2.2 lb = 1 kg)
• 0.7 kg / 1 lb 8.7 oz (1.542 lb)

• Author
• Model page created by Ervé Leclercq. See "Data change" for further contributors.
