• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 156858

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• 2SA163 2SA163 2SA163 2SA163 2SA70 2SA163 2SA163 2SD65 2SD65 2SB381 2SB381 1T26 1T23

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Dry Batteries / 3 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

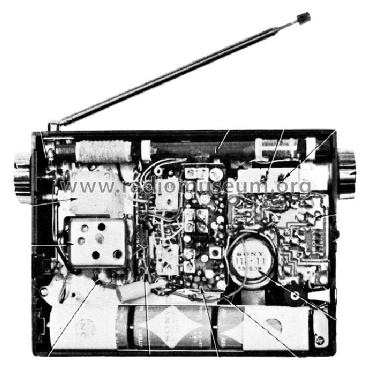

• Model: TFM-110L - Sony Corporation; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 180 x 131 x 47 mm / 7.1 x 5.2 x 1.9 inch

• Notes
• FM: 86,5 - 108 MHz.
  In Verbindung mit dem Sony FM Stereo Adaptor STA-110 für die FM - Stereowiedergabe.

• Net weight (2.2 lb = 1 kg)
• 0.950 kg / 2 lb 1.5 oz (2.093 lb)

• Price in first year of sale
• 3,995.00 BFr

• Source of data
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
