• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1971 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 107878

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 / 10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Power out
• 0.1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

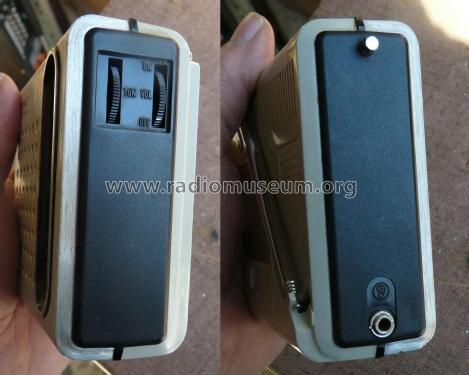

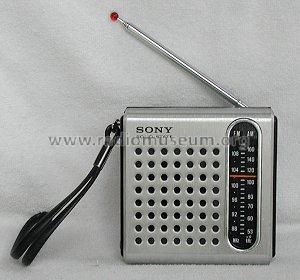

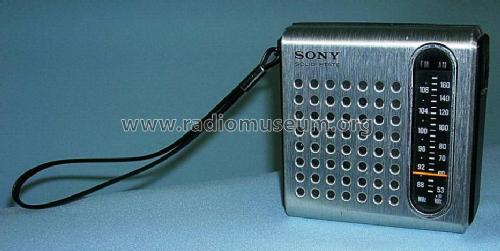

• Model: TFM-3750 W - Sony Corporation; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 100 x 100 x 45 mm / 3.9 x 3.9 x 1.8 inch

• Notes
• Kopfhöreranschluß über 3,5 mm Klinkenbuchse, Teleskopantenne 48 cm, Ferritantenne 6,5 cm

• Net weight (2.2 lb = 1 kg)
• 0.320 kg / 0 lb 11.3 oz (0.705 lb)

• Mentioned in
• -- Collector info (Sammler)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
