• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1977

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 83798

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• 2SC710 2SC710 2SC710 2SC710 2SC710 2SC710 2SC633 2SC633 2SC633

• Main principle
• ZF/IF 468/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)     7 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Dry Batteries / 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.6 cm = 2.6 inch

• Power out
• 0.2 W (undistorted)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

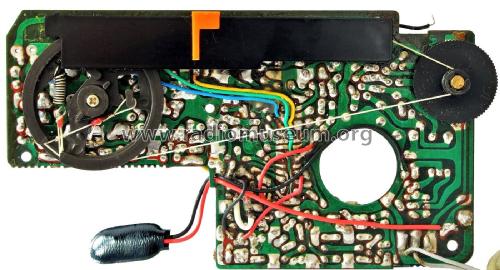

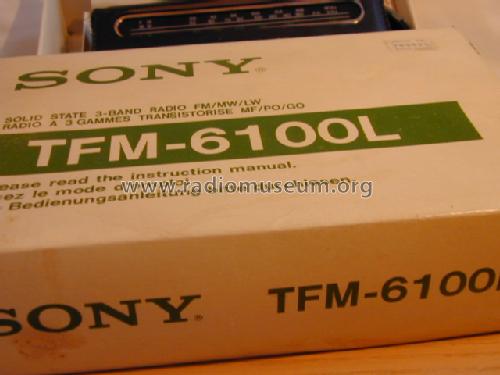

• Model: TFM-6100L - Sony Corporation; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 158 x 96 x 43 mm / 6.2 x 3.8 x 1.7 inch

• Notes

• Case material: plastic with aluminum front.
  The AM IF contains a ceramic (piezo) filter.

• Net weight (2.2 lb = 1 kg)
• 0.395 kg / 0 lb 13.9 oz (0.87 lb)

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Ervé Leclercq. See "Data change" for further contributors.
