FM/AM 2 Band Receiver TFM-6160W
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1979
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 121231

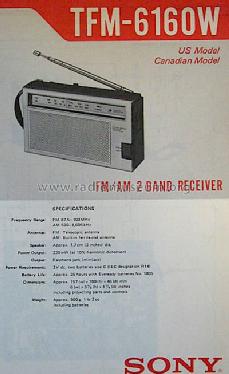

Sony IFA Katalog 1979
Original prospekt.
Service manual
Sony Katalog - IFA 1979
- Number of Transistors
- 11
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.

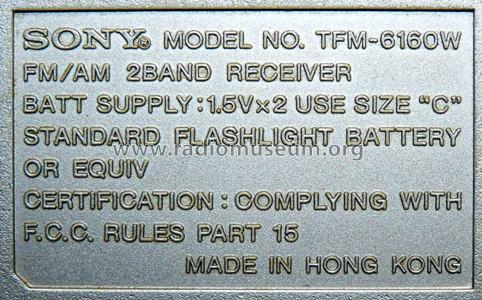

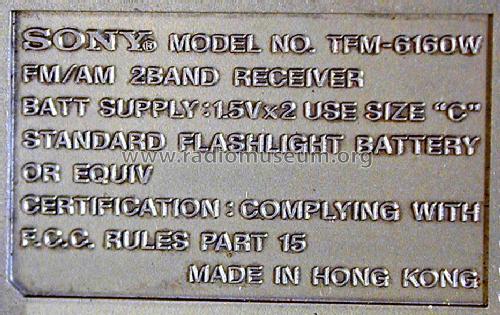

- Power type and voltage
- Dry Batteries / 2 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
- Power out
- 0.23 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: FM/AM 2 Band Receiver TFM-6160W - Sony Corporation; Tokyo

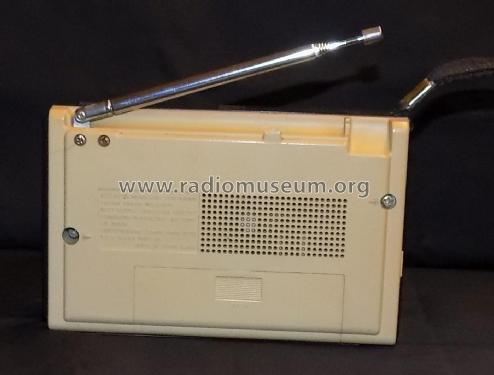

- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 155 x 100 x 43 mm / 6.1 x 3.9 x 1.7 inch
- Notes
-
Silver/black body, LED tuning indicator, earphone jack. (Note a probably different circuit or frequencies for US & Canadian model. FM: 87.5 - 108 MHz, AM: 530 - 1.605 kHz)
With carrying strap, front aluminium
- Net weight (2.2 lb = 1 kg)
- 0.5 kg / 1 lb 1.6 oz (1.101 lb)
- Mentioned in
- - - Manufacturers Literature (Sony IFA Katalog 1979)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
