• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1971 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 290081

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• 2SC710 2SC710 2SC710 2SC710 2SC710 2SC870 2SC870 2SB136 2SB136 1S1555

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / C: 3 x 1.5 / 4.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.5 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: TFM-6600L - Sony Corporation; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 222 x 125 x 57 mm / 8.7 x 4.9 x 2.2 inch

• Notes

• Sony FM/MW/LW Solid State Portable Radio-Receiver Model TFM-6600 L.
  Frequency Range:
  AM 530 - 1605 kHz
  FM 87,5 - 108 MHz
  LW 150 - 255 kHz
  Telescopic antenna

  Semiconductors:
  9x Transistors, 5x Diodes, 1x Thermistor



• Net weight (2.2 lb = 1 kg)
• 0.670 kg / 1 lb 7.6 oz (1.476 lb)

• Mentioned in

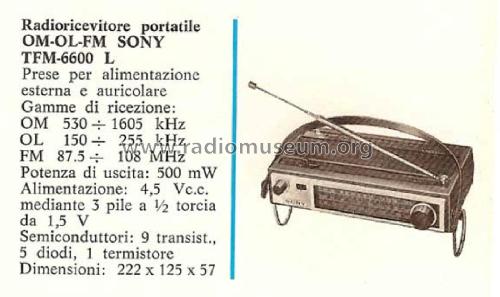

• -- Original prospect or advert (Sony Catalogue 1971 - 'Sperimentare')

• Literature/Schematics (1)
• -- Schematic (Schemario Radio Autoradio Mangianastri edizioni "Il Rostro" Italy, marzo 1971.)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
