• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1970 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 130234

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / UM2: 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: TFM-914 - Sony Corporation; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 245 x 170 x 85 mm / 9.6 x 6.7 x 3.3 inch

• Notes

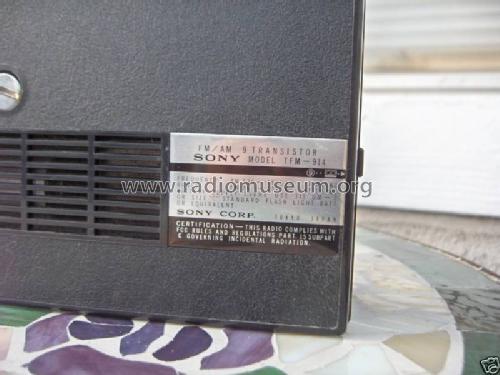

• Sony 9 Transistor TFM-914, switch for tone high/low, jacks for tape & earphone.

  AM/FM/AFC fixed handle, rod antenna

• Net weight (2.2 lb = 1 kg)
• 1.150 kg / 2 lb 8.5 oz (2.533 lb)

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from A. See "Data change" for further contributors.

• Other Models

• Here you find 4004 models, 3853 with images and 959 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Sony Corporation; Tokyo
