• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1974 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 259483

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 32

• Semiconductors
• 2SC632 2SC632 2SC634 2SC632 2SC632 2SC634 2SC634 2SC632 2SC634 2SC634 2SC634 2SC1060 2SC1060 2SC634 2SC632 2SC632 2SC634 2SC632 2SC632 2SC634 2SC634 2SC632 2SC634 2SC634 2SC634 2SC1060 2SC1060 2SC634 2SC634 2SC634 2SC634 2SC634 10D-2

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Various materials

• from Radiomuseum.org

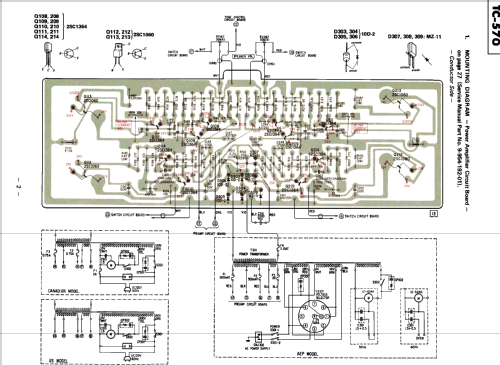

• Model: Three Head Stereo Tape Recorder TC-570 - Sony Corporation; Tokyo

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Literature/Schematics (1)
• -- Schematic (Esquemario Magnetófonos y Cassettes REDE, Tomo V, 1977)

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.

• Other Models

• Here you find 3991 models, 3852 with images and 956 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Sony Corporation; Tokyo
