• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1968 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 204343

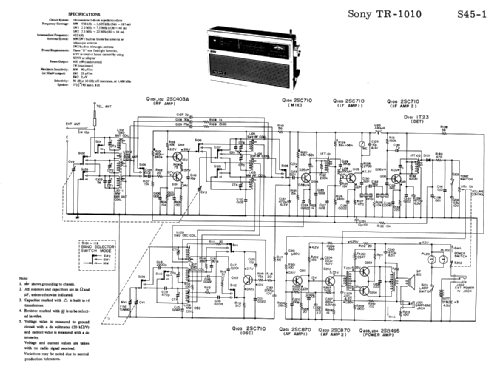

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• 2SC403 2SC403 2SC710 2SC710 2SC710 2SC710 2SC870 2SC870 2SB495 2SB495

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Dry Batteries / 3 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

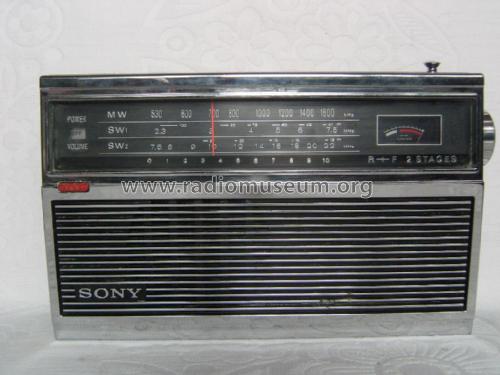

• Model: TR-1010 - Sony Corporation; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 240 x 150 x 60 mm / 9.4 x 5.9 x 2.4 inch

• Notes
• MW: 530~1605 KHz SW1: 2,3~7,5 MHz SW2: 7,5~22 MHz

• Author
• Model page created by Philip Obetsanov. See "Data change" for further contributors.
