TR 1824

• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1972/1973

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 133467

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2SC537 or. 2SC403 2SC537 or. 2SC403 2SC537 or. 2SC403 2SC537 or. 2SC402 2SB187 2SB187 1S188

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

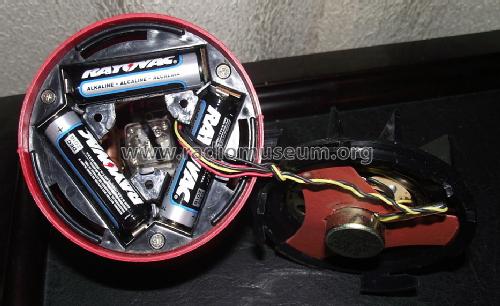

• Power type and voltage
• Dry Batteries / 3 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: TR 1824 - Sony Corporation; Tokyo

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• Dimensions (WHD)
• 3.5 x 4 x 3.5 inch / 89 x 102 x 89 mm

• Notes

• Kleinstradio, rund ca 28 cm Umfang, Länge 12 cm.

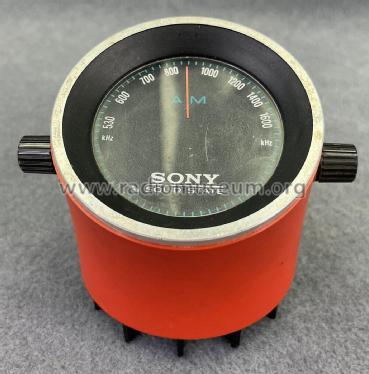

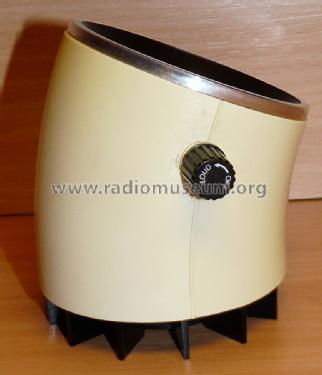

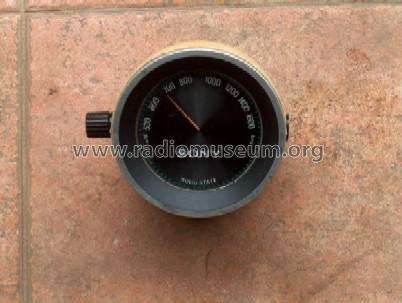

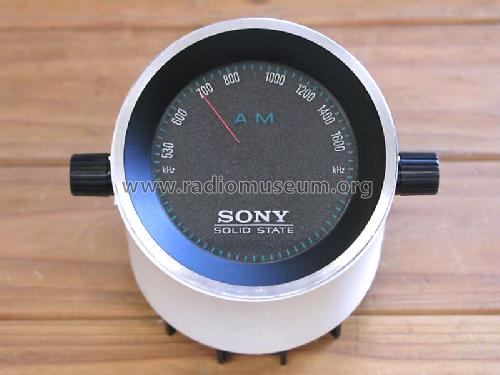

  Sony battery-operated 6-Transistor AM radio Model TR-1824.

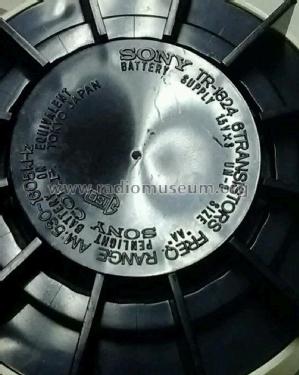

  Frequency Range:
  AM 530 - 1605 kHz

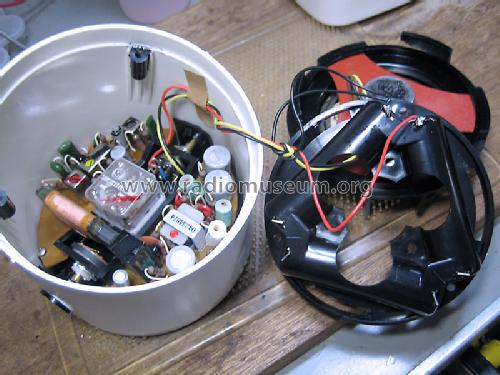

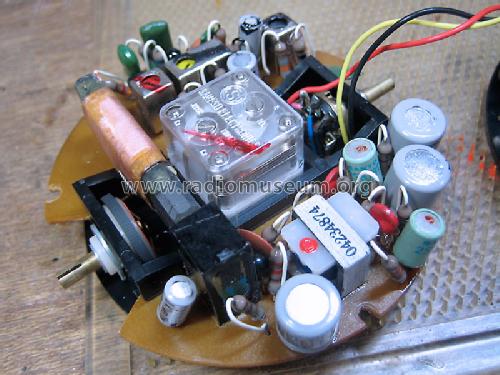

  First IF transformer is a combined L/C and piezo resonator.

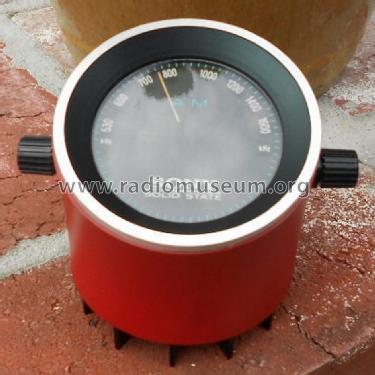

  Available in red or white.


• Net weight (2.2 lb = 1 kg)
• 0.3 kg / 0 lb 10.6 oz (0.661 lb)

• Price in first year of sale
• 15.95 USD

• Mentioned in
• -- Original prospect or advert (Sony Print Ad 1971)

• Literature/Schematics (1)
• -- Schematic (Schemario Radio Autoradio Mangianastri edizioni "Il Rostro" Italy, marzo 1971.)

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
