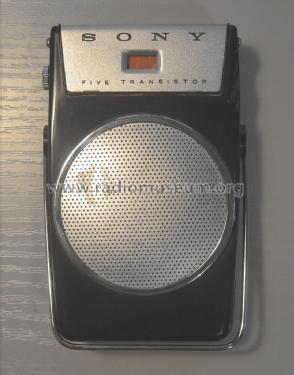

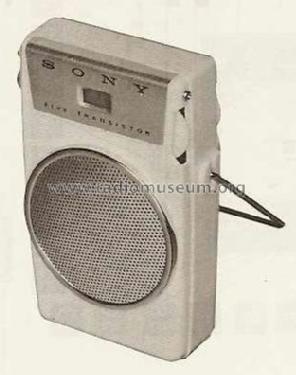

5 Transistor TR-510
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1961
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 126613
- Number of Transistors
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / BL-006P/1604: 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.7 cm = 2.2 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 5 Transistor TR-510 - Sony Corporation; Tokyo
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 63 x 106 x 25 mm / 2.5 x 4.2 x 1 inch
- Notes
-
Reflex Stage IF/1stAF
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 552 Folder 13 10-1961)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
- Other Models
-
Here you find 3995 models, 3856 with images and 957 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Sony Corporation; Tokyo
Collections
The model 5 Transistor is part of the collections of the following members.
Forum contributions about this model: Sony Corporation;: 5 Transistor TR-510
Threads: 1 | Posts: 1

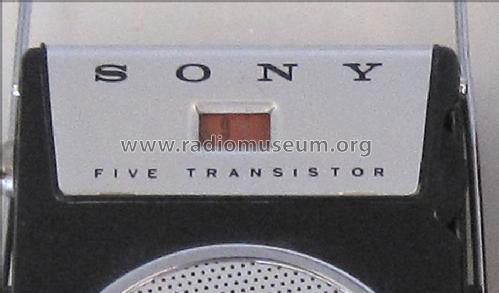

Esiste una versione di questo modello che ha esternamente l'iscrizione "All Transistor" anzichè "Five Transistor" ed internamente porta l' etichetta con la scritta " Tr-510"
Bruno Superina, 29.Nov.09
