TR-810
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 77887

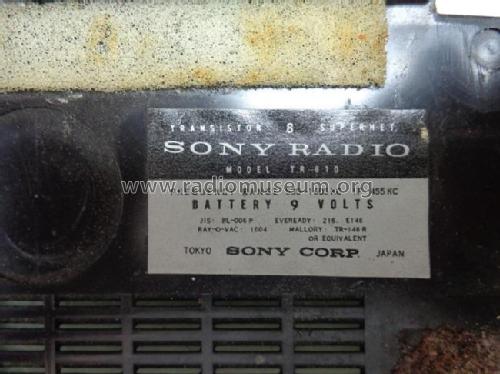

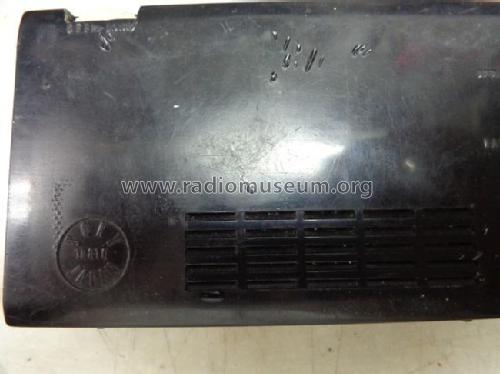

Ebay Seller dochestx ItemNumber 111007445418
Ebay Seller dochestx ItemNumber 111007445418
Ebay Seller dochestx ItemNumber 111007445418
Japanese domestic advert
Japanese domestic advert

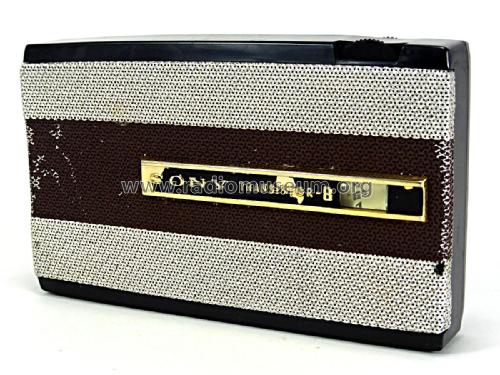

Frontal view

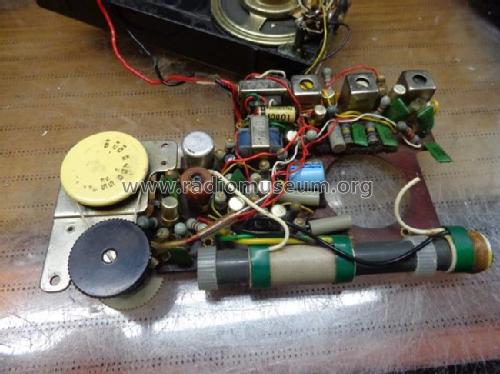

Sony transistors on PCB
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 8
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
- Power out
- 0.06 W (undistorted)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: TR-810 - Sony Corporation; Tokyo
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 134 x 82 x 23 mm / 5.3 x 3.2 x 0.9 inch
- Notes
-
Sony TR-810; Transistors: 2T750 2T767 USA: November 1959 in National Geographic with picture for $ 49.95 as TR712 at that time.
- Net weight (2.2 lb = 1 kg)
- 0.3 kg / 0 lb 10.6 oz (0.661 lb)
- Price in first year of sale
- 9,300.00 Yen
- Source of data
- -- Schematic
- Literature/Schematics (1)
- -- Original prospect or advert (National Geographic, 1959 November, together with TR712.)
- Author
- Model page created by Robert Schmalstieg. See "Data change" for further contributors.
