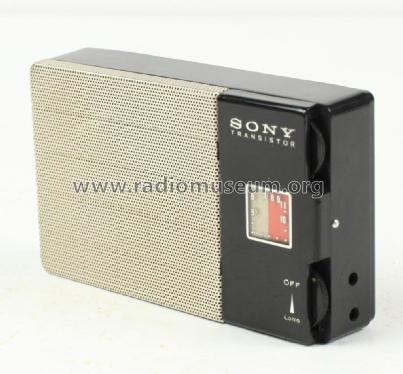

Transistor TR-69 and TR-691

• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 312633

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2T73 2T76 2T76 2T65 2T65 2T65 1T23

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Transistor TR-69 and TR-691 - Sony Corporation; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 115 x 70 x 30 mm / 4.5 x 2.8 x 1.2 inch

• Notes

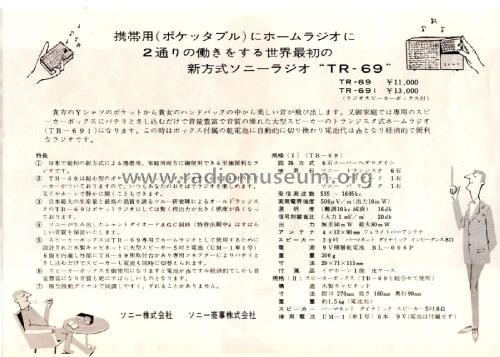

• This radio is model TR-69.  Model TR-691 combination of model TR-69 with the external battery-speaker box TBS-1.  The price for model TR-69 was 11,000 Yen, and the price for model TR-691 was 13,000 Yen.

• Net weight (2.2 lb = 1 kg)
• 0.3 kg / 0 lb 10.6 oz (0.661 lb)

• Author
• Model page created by Aldo Andreani. See "Data change" for further contributors.
