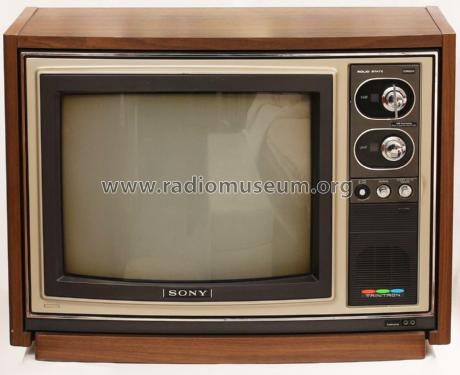

Trinitron KV-1830AS Ch= SCC-112A-A

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1977–1980
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 328412

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • Number of Transistors
  • 77
  • Semiconductors
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
  • Power out
  • 2 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Trinitron KV-1830AS Ch= SCC-112A-A - Sony Corporation; Tokyo
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 651 x 480 x 391 mm / 25.6 x 18.9 x 15.4 inch
  • Notes

  • Table model colour television receiver, 44 cm (18") screen, 114º Trinitron picture tube, UHF/VHF, AC operated, Econoquick start, matching stand available.

  • Net weight (2.2 lb = 1 kg)
  • 30 kg / 66 lb 1.3 oz (66.079 lb)
  • Price in first year of sale
  • 649.00 AUS $
  • Author
  • Model page created by Martin Kent. See "Data change" for further contributors.
