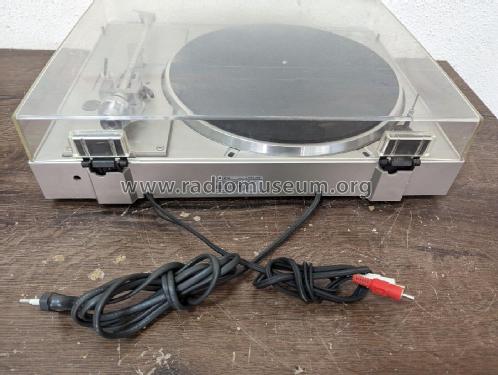

Turntable PS-LX22

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1982/1983
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 184994

 Technical Specifications

  • Wave bands
  • - without
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 120 (US) / 220 (EU) Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Turntable PS-LX22 - Sony Corporation; Tokyo
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 430 x 110 x 355 mm / 16.9 x 4.3 x 14 inch
  • Notes

  • Direct drive. 33 1-2 & 45 rpm.
    Platter of aluminum-alloy dicast, Ø 30.4 cm.

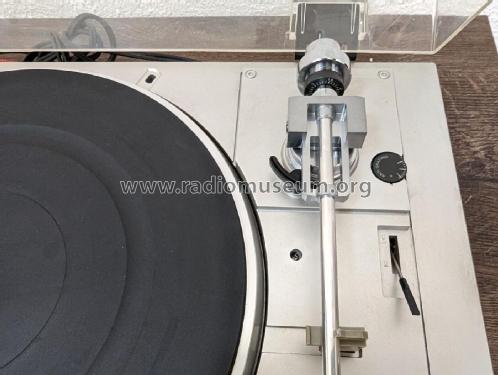

    Tonearm statically ballanced; stylus force 0-3 g.
    Cartridge VL-5, stylus ND-5G, moving magnet type, 10Hz-20kHz.
    Amp required for sound reproduction.

    Piatto 30,4 cm pressofusione in lega d'alluminio.
    Motore BLS a coppia motrice lineare.
    Trascinamento diretto.
    Sistema di controllo: servocontrollo FG.
    Velocità 33-1/3 rpm, 45 rpm.
    Cartuccia XL-150 ; puntina ND-150G (diamante conico, 0,6 mil).
    Per utilizzare una cartuccia diversa si deve utilizzare l'apposito contenitore Sony SH-151.
    Consumo 5 W.

    L'apparecchio si completava con i seguenti componenti Hi-Fi:

    • INTEGRATED STEREO AMPLIFIER "TA-AX22"
    • STEREO CASSETTE DECK "TC-FX33"
    • SPEAKER SYSTEM "SS-E55"
    • AUDIO-RACK "SU-S23"

    In aggiunta era possibile completare l'impianto stereo abbinando il remote controler RM-44 e il graphic equalizer SEH-22.

  • Net weight (2.2 lb = 1 kg)
  • 4 kg / 8 lb 13 oz (8.811 lb)
  • Source of data
  • - - Manufacturers Literature
  • Literature/Schematics (1)
  • - - Manufacturers Literature
  • Author
  • Model page created by Rolf Franke. See "Data change" for further contributors.
