• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1979

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 121143

• Number of Tubes
• 1

• Valves / Tubes

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Line / Batteries (any type) / 220; 12; 9 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

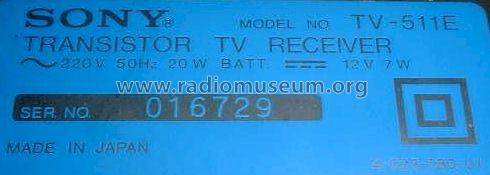

• Model: TV-511E - Sony Corporation; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 284 x 173 x 287 mm / 11.2 x 6.8 x 11.3 inch

• Notes
• 13 cm olive-green military look designed b/w TV, CRT turnable up to 90°, CCIR standard B/G VHF-/UHF tuner, switchable external or built-in telescopic antenna, earphone jack.

• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• Source of data
• -- Collector info (Sammler)

• Mentioned in
• - - Manufacturers Literature (Sony IFA Katalog 1979)

• Author
• Model page created by a member from A. See "Data change" for further contributors.

• Other Models

• Here you find 3995 models, 3856 with images and 958 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
