TV-720 UET
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1972
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 120445
Advert ~1971

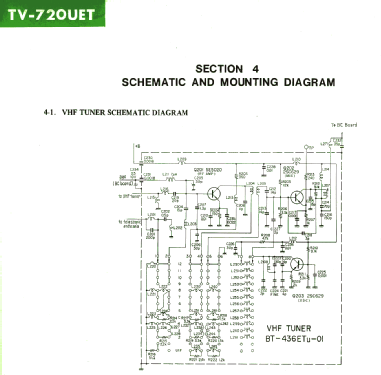

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- 190AB4
- Number of Transistors
- 22
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Line / Batteries (any type) / 220; 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 0.3 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: TV-720 UET - Sony Corporation; Tokyo
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 229 x 234 x 285 mm / 9 x 9.2 x 11.2 inch
- Notes
-
- Portable 7" b/w TV
- CCIR B/G and Italian standard
- VHF and UHF tuner.
- Net weight (2.2 lb = 1 kg)
- 4.4 kg / 9 lb 11.1 oz (9.692 lb)
- Source of data
- -- Original prospect or advert
- Author
- Model page created by a member from A. See "Data change" for further contributors.
