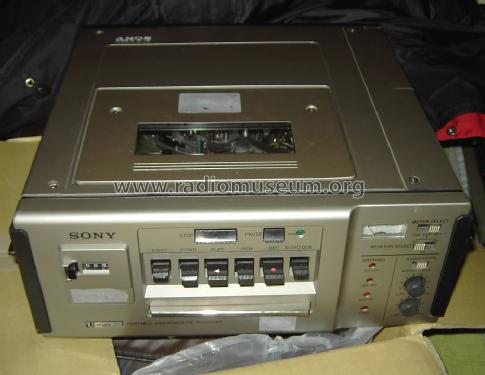

U-matic Portable Videocassette Recorder VO-4800PS
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1979
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 224970
Von der Seite durch das Chassis gesehen

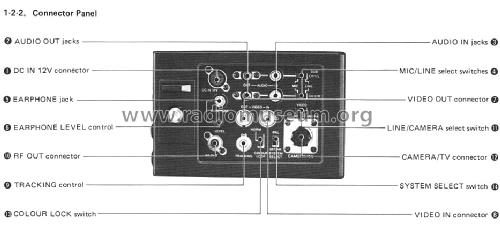

Das Anschlussfeld
Source: Sony Service manual for VO-4800PS
Das Typenschild mit der Seriennummer.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Details
- Video-Taperecorder/-Player
- Power type and voltage
- Batteries / addl. power jack / 12 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: U-matic Portable Videocassette Recorder VO-4800PS - Sony Corporation; Tokyo
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 336 x 135 x 350 mm / 13.2 x 5.3 x 13.8 inch
- Notes
-
Sony U-matic Portable Videocassette Recorder VO-4800PS;
Video recording signal: CCIR-standards, PAL or SECAM colour signal
Video input: Composite, sync negative, 1 V p-p, 75 Ohm, unbalanced
Video output: Composite, sync negative, 1 V p-p, 75 Ohm, unbalanced
RF modulator output: Available as an option
Horizontal resolution: 250 lines
Signal-to-noise ratio: Colour: Better than 45 dB
Audio frequency response: 50-12000 Hz
Colour Camera: Colour Video camera DXC-Series (e.g. DXC-1640P)
Power Supply: AC-340CE, recharges also Sony BP-60 and BP-20A batteries.
- Net weight (2.2 lb = 1 kg)
- 7.9 kg / 17 lb 6.4 oz (17.401 lb)
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Reinhard Riek. See "Data change" for further contributors.
